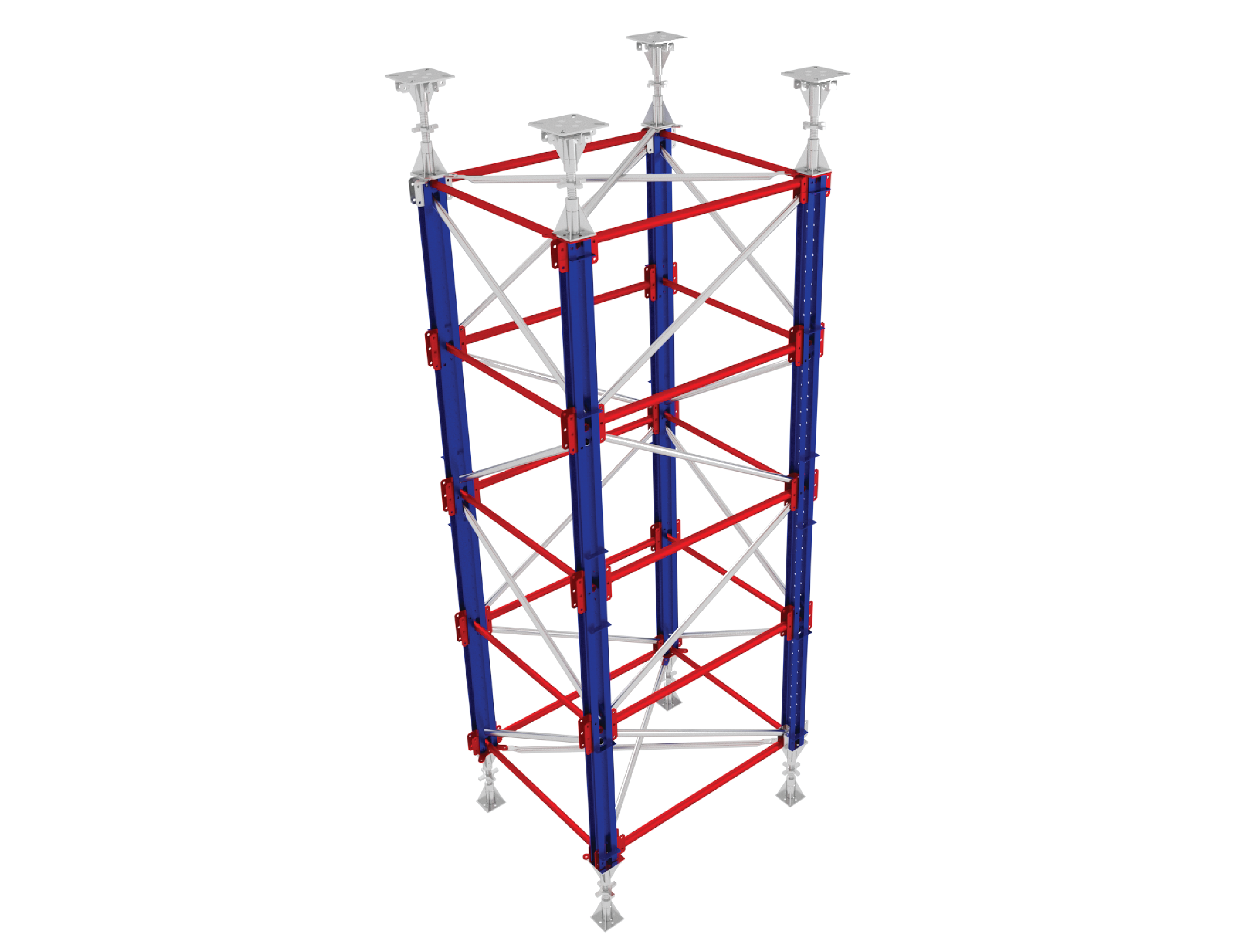

WORCA Soldier Heavy-Duty Shoring System
Boasts a high load-bearing capacity, specifically designed for projects demanding the transfer of substantial weights. Typically, pre-assembled into individual towers for efficient jobsite delivery, this versatile system finds application in a broad spectrum of tasks, including heavy lifting, gantry support, and even repair and repropping scenarios.
Main Components
Supplied by WORCA
- Vertical soldiers
- Horizontals
- Diagonals, plain braces
- Upper & Lower jacks
- End plates
- Multiple heavy connections
Applications
- Bridge & Tunnel formwork
- Heavy duty shoring for cast in-situ bridges
- Gantries
- Horizontal HD struts
- Temporary shoring for pre-cast bridges
- Re-propping
- Maintenance and repair for bridges
Technical Data
- Working load: Up to 350 kN per post
- Tower height: Variable heights [according to the design]
- Tower configuration [plan view]: Variable sizes [according to the design]
- Instead of using fixed-length horizontal and diagonal pipe braces, they can be replaced by adjustable standard push-pulls in some special cases to improve system useability
- Hydraulic jacks can be used to release heavy loads
- Instead of using single soldier per each leg, different arrangements of double or quadruple soldiers can be used to achieve even bigger allowable loads
Special Features
- 2-Soldier Up to 600 kN/post
- 4-Soldier Up to 1000 kN/post
Site Requirements
Supplied by Contractor
Crane
